Guest Blog: Promote Control Mini-Review by Luc Schoonjans (Updated: 5/28/2013) Discount Expires June 11th!

Promote Control
Promote Control
Actual Photo (vs the rendered view found most other places)

I shoot with a Canon 5D Mark II and occasionally dabble with HDR. If you shoot Canon too, you know that the auto-bracketing exposure (AEB) is limited to 3 exposures on all but the 1D Series bodies, while Nikon allows up to 9 exposures. So, what do you do? Short of buying a new camera, you stick to the limits provided by Canon, or you take a set of 3 exposures, change the settings on the camera, take another set of 3 exposures. This is far from ideal as this may cause misalignment between sets of exposures.

Enter the Promote control, from Promote Systems. When I heard Ron had one unit on loan, I had to ask him permission to do some field testing with it.

My first surprise is that the Promote Control is much more than just a snazzy device for taking HDR pictures. A quick run through the various modes and you realize this device does a lot more:

However, there is a little caveat for the Focus Stacking. The unit I used was loaded with firmware 2.25 (beta), which allows Focus stacking, but only for Canon cameras with the Live View feature. This is temporary though, as Promote systems will extend this feature to Nikon as well, in a future firmware release. A quick look at their website reveals that the latest firmware release is now at version 2.36 (beta, as well). Click on this link to see the details of the list of firmware and the features that are added.

The second surprise was the ease of use. It is very intuitive. For each mode you select the parameters that you want to set, hit “Start” and voila. For each mode there are a few pre-requisites for the unit to operate flawlessly. So, before reading the manual, it does pay off to watch the “Quick Start Videos” that are posted on Promote systems main webpage (and here on YouTube). They are short, but they will set you straight away on the right track.

Promote control, in its basic configuration, comes with the following:

  • The unit,
  • 1 USB cable, to connect the unit to the computer (for firmware updates),
  • 1 mini USB cable to connect the control to the camera,
  • a lanyard,
  • and a pouch.

If you shoot HDR, it is strongly recommended you buy the additional Shutter cable, for faster operations (more details below).

This review focuses (no pun intended) on HDR and focus stacking

HDR – Mini field testing

As mentioned earlier, if you want to get the best experience in this mode, get the additional Shutter cable. Among the many advantages, there are 2 that are directly relevant for HDR:

  • Enable faster shutter release
  • Enables mirror lockup functionality

This cable is brand specific, so make sure to get the right one for your camera.

The pre-requisite for this mode are the following:

  1. Set your camera on manual exposure mode
  2. Set the exposure setting on 1/3 of a stop increments
  3. Set the lens on manual focus.

This means that in the field you will want to do the pre-focusing first and then switch to manual focus.

Using the Promote Control is straightforward. Set your camera as indicated above, connect the unit to your camera, select your settings and press “start”. The combo camera/Promote Control does the rest.

What I personally liked about this unit in real life shooting is two-fold:

  1. Once you have focused and connected the unit to you camera, you no longer touch it. You can shoot the same scene using different settings and never lay hands on your camera, hence avoiding misalignment between exposures
  2. It is flexible.

The power of the Promote Control lies with the settings:

  • Number of exposures (it goes up to 29)
  • Interval between exposures are in increments of 1/3 of a stop
  • Mirror lock-up
  • Time lapse HDR
  • Sequence of exposures (from dark to bright, or the opposite)

There are additional options in the Function menu that allows you to customize your unit so that it matches your camera and your shooting style more adequately.

If there is one drawback that I can think of, it is one more accessory to carry with you. The unit is very light, weight is not at all an issue, and the pouch allows you to stow away the unit plus its cable in a very snug way. It is just “one more thing to pack and carry with you. Having said that, you can buy a tripod holder that allows you to attach the Promote Control to the tripod, and / or you can also buy the remote control unit. (I did not have either of those, so I was not able to test them).

Focus Stacking – Mini field testing


Focus Stacking Example
Notice how both the foreground and background objects are in full focus

Focus Stacking is a technique that consists of taking 2 or more pictures at different focus points and combine them later in software, in order to achieve greater depth of field. This particularly handy for situations where depth of filed is a challenge, like macro photography, but of course, this applies to any situations where you want to get the greatest sharpness you can get, from near to far (architecture, landscape …).

This features uses Live View, so in the case, you just need the USB cable that links the unit to your camera (no shutter cable required for this mode).

Click here to see a gallery that shows all 15 shots taken to create the shot above that is perfectly in focus from the rear all the way to the front of the image. Doing this by hand is a pain yet this app makes it easy to capture the images for use by your favorite focus stacking software.

Again, there are some simple pre-requisites. Your camera needs to be set in manual exposure mode, and One-Shot mode. The lens this time will need to be switched to AF. You then connect the unit and adjust the settings. Note that when you start adjusting the settings, Live View turns on automatically, and you see the effect on focus on your LCD as you adjust the settings on the unit. The Promote Systems main page has a video that explains how to use this mode in more details than I could do here, but I must say, using this mode will make you a believer.

Make sure you read the caveat above. This feature is currently available only to Canon cameras (with Live View functionality). It will be extended to Nikon in a future firmware release. With that out of the way, WOW, I would buy the Promote Control just for this feature alone. I absolutely love it.

Conclusion

This mini-review has only scratched the surface. As mentioned earlier, there are additional modes that I have not even used yet. Additionally, one feature I have not included in this review is that you can combine modes together, for instance, Time-lapse HDR, or Focus Stacking HDR. But for what I have seen so far, Promote Control is a very powerful tool. It is very flexible, and allows you to do much more than what you would normally achieve with a regular remote control, like the Canon remote release and other similar alternatives.

If you shoot HDR, Time-lapse or do focus stacking (and more), I would definitely recommend buying one. You will use it a lot.

Special Offer (EXPIRES June 11, 2013)

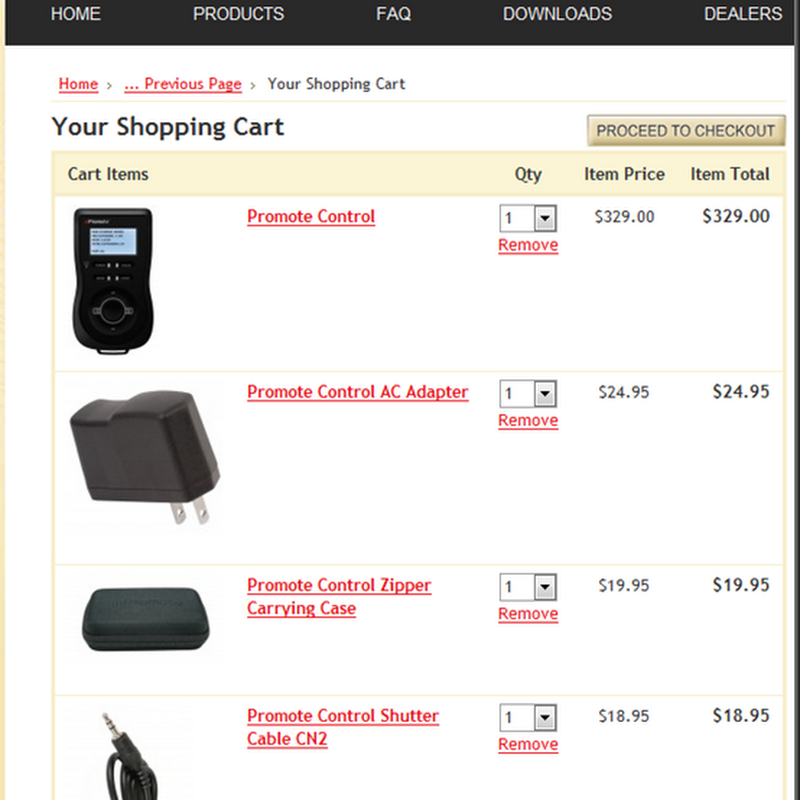

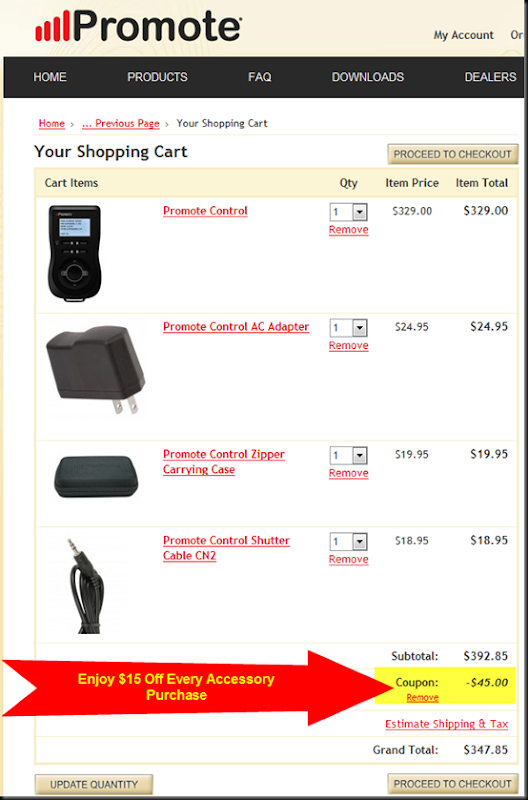

Click this link to place your order directly from Promote Systems, and get $15 off the total price of your order. This offer WILL NOT WORK if you don’t click the link.

You can also order from Adorama or B&H and get free shipping.

Disclosure

This unit was loaned to Ron & Luc by a reader of this blog. I may get a commission if you make a purchase using the links in this article.

NOTE: This site requires cookies and uses affiliate linking to sites that use cookies.

If you enjoyed this article, please support future articles like this by making a donation or saving money by using my discount coupon codes. Either way, your support is greatly appreciated!

This blog is intended for freelance writing and sharing of opinions and is not a representative of any of the companies whose links are provided on this site.

The opinions provided are of Ron Martinsen alone and do not reflect the view of any other entity

12 comments:

HenryH said...

I've had mine for about a year now and find indispensable for HDR work with my 5D MkII. If you use an L bracket, such as the one from RRS, I do recommend one additional accessory: a left-angle extension like this one:
http://www.usbfirewire.com/Parts/rr-2mbl01-ext-xxgl5.html#RR-2MBL01-EXT-06GL5
or http://tinyurl.com/6rk8nrj
I have to adjust the bracket so that it's about 1/8" or so away from the side of the camera. I can then attach both the shutter release and USB cables and still slide it onto my ballhead clamp.

Joe said...

Interesting write up. I have been considering one of these but with everything else coming out I will have to pass for now. I was not aware that it does focus stacking though – which is interesting, though of limited use to me as most of my lenses are MF.

However, one mistake in the blog is that this device will not work for macro stacking. When you change focus, you are effectively changing magnification. For a photo of a glass + plate this will not make much of a difference, but in macro photography it has a huge impact. The toughest concept for new macro photographers that I have seen is in macro

Focus = change magnification
Move camera back and forth = change focus
AF = does not exist

For this reason, if you want to do focus stacking in macro this device will not work. To manually focus stack you need a macro rail. For automated focus stacking you need one of these - http://www.cognisys-inc.com/stackshot/stackshot.php?osCsid=67c7b4ecd73765fe3bf529438fbc625d

PhotoshopIsland said...

I purchased a Promote about 2 months ago. I too use a Canon 5D. In the 2 months since I purchased it's the most used and appreciated piece of equipment I own outside of my camera and lens (and I use the Promote far more than some of my lenses). I've mostly used for HRD but am now experimenting with stacked focused images after installing the latest firmware beta. Per Joe's comment I'm using Helicon Focus to process stacked images (Joe how does this software impact your comment?)

You can see some of my HDR Promote image at ipicture365.com and my facebook fan page https://www.facebook.com/photoshopisland

yuck said...

you should check your B&H link, don't think it points out to the right place

Anonymous said...

Another alternative is an Android app called DSLR Controller. It is only in beta but is already extremely useful for controlling your camera from a phone or tablet, including for HDR bracketing of up to 40+ images.

https://market.android.com/details?id=eu.chainfire.dslrcontroller&hl=en

Unknown said...

The link still doesn't work ((((

ronmartblog.com said...

My apologies for the incorrect link. That issue has now been resolved.

Joe Tucker said...

Any idea when the special offer might be live? I'll hold off to order if you think it will be soon.

Jim said...

Great review, I've had the Promote for a while now and use it for timelapse and HDR. I didn't realize I could use it for focus stacking so I'm very excited to try it out. Thanks again for the review.

ronmartblog.com said...

Update - the offer is live and details are in the article. I forgot to post this a few weeks back.

Anonymous said...

This offer is not working anymore. I can only get $15.00 rebate for the whole system instead of $15.00 per each accessory. Any issues?

ronmartblog.com said...

I need to update the article because the offer chance. The listed offer was abused so it had to be limited to just one accessory for $15 off.
